eLynx::Image::IImageOperators Class Reference
#include <IImageOperators.h>

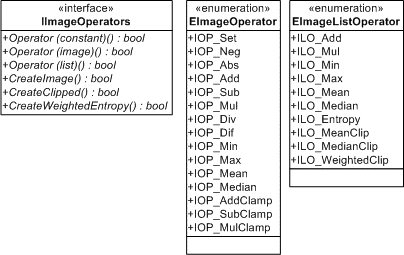

Inheritance diagram for eLynx::Image::IImageOperators:
Public Member Functions | |
| virtual | ~IImageOperators () |
| virtual bool | Operator (AbstractImage &ioImage, EImageOperator iOperator, double iValue, uint32 iChannelMask, ProgressNotifier &iNotifier) const =0 |
| virtual bool | Operator (AbstractImage &ioImage, EImageOperator iOperator, const AbstractImage &iImage, uint32 iChannelMask, ProgressNotifier &iNotifier) const =0 |
| virtual bool | Operator (AbstractImage &ioImage, EImageOperator iOperator, const AbstractImage &iImage, const ImageLub &iImageMask, uint32 iChannelMask, ProgressNotifier &iNotifier) const =0 |
| virtual bool | Operator (AbstractImage &ioImage, EImageOperator iOperator, const std::vector< const AbstractImage * > &iImageList, uint32 iChannelMask, ProgressNotifier &iNotifier) const =0 |
| virtual boost::shared_ptr < AbstractImage > | CreateImage (EImageListOperator iOperator, const std::vector< const AbstractImage * > &iImageList, uint32 iChannelMask, ProgressNotifier &iNotifier) const =0 |
| virtual boost::shared_ptr < AbstractImage > | CreateClipped (EImageListOperator iOperator, const std::vector< const AbstractImage * > &iImageList, uint32 iIteration, double iKappa, uint32 iChannelMask, ProgressNotifier &iNotifier) const =0 |
| virtual boost::shared_ptr < AbstractImage > | CreateWeightedEntropy (const std::vector< const AbstractImage * > &iImageList, uint32 iW, uint32 iH, uint32 iChannelMask, ProgressNotifier &iNotifier) const =0 |
Detailed Description
Interface defining image operators functionnalities.
Definition at line 74 of file IImageOperators.h.
Constructor & Destructor Documentation
| virtual eLynx::Image::IImageOperators::~IImageOperators | ( | ) | [virtual] |
Member Function Documentation
| virtual bool eLynx::Image::IImageOperators::Operator | ( | AbstractImage & | ioImage, | |
| EImageOperator | iOperator, | |||
| double | iValue, | |||
| uint32 | iChannelMask, | |||
| ProgressNotifier & | iNotifier | |||
| ) | const [pure virtual] |
Apply operator with const value.
- Parameters:
-
ioImage image to process. iOperator Operator to apply. iValue double value as argument of operator. iChannelMask selected channels to be processed. Default is all. iNotifier a notifier for progression, log and cancel.
- Returns:
- Method running status.
Implemented in eLynx::Image::ImageOperatorsImpl< Pixel >.
| virtual bool eLynx::Image::IImageOperators::Operator | ( | AbstractImage & | ioImage, | |
| EImageOperator | iOperator, | |||
| const AbstractImage & | iImage, | |||
| uint32 | iChannelMask, | |||
| ProgressNotifier & | iNotifier | |||
| ) | const [pure virtual] |
Apply operator with another image, ioImage = ioImage (operator) iImage ioImage and iImage must have the same format and size.
- Parameters:
-
ioImage image to process. iOperator Operator to apply. iImage 2nd image as operator argument. iChannelMask selected channels to be processed. Default is all. iNotifier a notifier for progression, log and cancel.
- Returns:
- Method running status.
Implemented in eLynx::Image::ImageOperatorsImpl< Pixel >.
| virtual bool eLynx::Image::IImageOperators::Operator | ( | AbstractImage & | ioImage, | |
| EImageOperator | iOperator, | |||
| const AbstractImage & | iImage, | |||
| const ImageLub & | iImageMask, | |||
| uint32 | iChannelMask, | |||
| ProgressNotifier & | iNotifier | |||
| ) | const [pure virtual] |
Apply operator with another image, ioImage = ioImage (operator) iImage ioImage and iImage must have the same format and size.
- Parameters:
-
ioImage image to process. iOperator Operator to apply. iImage 2nd image as operator argument. iImageMask image mask, operator is not applied where value is 0. iChannelMask selected channels to be processed. Default is all. iNotifier a notifier for progression, log and cancel.
- Returns:
- Method running status.
Implemented in eLynx::Image::ImageOperatorsImpl< Pixel >.
| virtual bool eLynx::Image::IImageOperators::Operator | ( | AbstractImage & | ioImage, | |
| EImageOperator | iOperator, | |||
| const std::vector< const AbstractImage * > & | iImageList, | |||
| uint32 | iChannelMask, | |||
| ProgressNotifier & | iNotifier | |||
| ) | const [pure virtual] |
Apply operator on image list, oImage = operator iImageList. All images including the output one must have the same format and size.
- Parameters:
-
ioImage image to process. iOperator Operator to apply. iImageList collection of the input images to compute the average. iChannelMask selected channels to be processed. Default is all. iNotifier a notifier for progression, log and cancel.
- Returns:
- Method running status.
Implemented in eLynx::Image::ImageOperatorsImpl< Pixel >.
| virtual boost::shared_ptr< AbstractImage > eLynx::Image::IImageOperators::CreateImage | ( | EImageListOperator | iOperator, | |
| const std::vector< const AbstractImage * > & | iImageList, | |||
| uint32 | iChannelMask, | |||
| ProgressNotifier & | iNotifier | |||
| ) | const [pure virtual] |
Creates an image from the list of images by using one of the following methods:
- Adding them together
- Multiplying by each other
- Taking Min pixel value
- Taking Max pixel value
- Taking Mean pixel value
- Taking Median pixel value
- Parameters:
-
iOperator Method to apply. iImageList Vector of pointers to input images. iChannelMask selected channels to be processed. Default is all. iNotifier a notifier for progression, log and cancel.
- Returns:
- new clipped image.
Implemented in eLynx::Image::ImageOperatorsImpl< Pixel >.
| virtual boost::shared_ptr< AbstractImage > eLynx::Image::IImageOperators::CreateClipped | ( | EImageListOperator | iOperator, | |
| const std::vector< const AbstractImage * > & | iImageList, | |||
| uint32 | iIteration, | |||
| double | iKappa, | |||
| uint32 | iChannelMask, | |||
| ProgressNotifier & | iNotifier | |||
| ) | const [pure virtual] |
Creates an image from the list of images by using one of the following methods:
- Kappa-sigma clipping where first extreme values are rejected iteratively then the remaining values are averaged,
- Median Kappa-sigma clipping is the same as the first one but instead of averaging remaining values, the median of the remaining values is used,
- Auto Adaptive weighted average where extreme values are not rejected but instead assigned a very low weight. So all the values are kept but the weight of each value depends on how far the value is from the mean.
- Parameters:
-
iOperator Method to apply. iImageList Vector of pointers to input images. iIteration Number of iterations. iKappa Kappa parameter. iChannelMask selected channels to be processed. Default is all. iNotifier a notifier for progression, log and cancel.
- Returns:
- new clipped image.
Implemented in eLynx::Image::ImageOperatorsImpl< Pixel >.
| virtual boost::shared_ptr< AbstractImage > eLynx::Image::IImageOperators::CreateWeightedEntropy | ( | const std::vector< const AbstractImage * > & | iImageList, | |
| uint32 | iW, | |||
| uint32 | iH, | |||
| uint32 | iChannelMask, | |||
| ProgressNotifier & | iNotifier | |||
| ) | const [pure virtual] |
Creates an image from the list of images by using Weighted Entropy method.
- Parameters:
-
iImageList Vector of pointers to input images. iW Width of the window to calculate the entropy. iH Height of the window to calculate the entropy. iChannelMask selected channels to be processed. Default is all. iNotifier a notifier for progression, log and cancel.
- Returns:
- new averaged image.
Implemented in eLynx::Image::ImageOperatorsImpl< Pixel >.
The documentation for this class was generated from the following file:
