eLynx::Image::IImageMorphologicalProcessing Class Reference

#include <IImageMorphologicalProcessing.h>

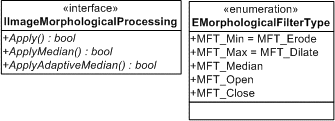

Inheritance diagram for eLynx::Image::IImageMorphologicalProcessing:

List of all members.

Public Member Functions
virtual	~IImageMorphologicalProcessing ()
virtual bool	Apply (AbstractImage &ioImage, EMorphologicalFilterType iType, const ImageLub &iKernelMask, bool ibLuminance, uint32 iIteration, uint32 iChannelMask, ProgressNotifier &iNotifier) const =0
virtual bool	Apply (AbstractImage &ioImage, EMorphologicalFilterType iType, uint32 iWidth, bool ibCircular, bool ibLuminance, uint32 iIteration, uint32 iChannelMask, ProgressNotifier &iNotifier) const =0
virtual bool	ApplyMedian (AbstractImage &ioImage, uint32 iWidth, uint32 iHeight, uint32 iIteration, uint32 iChannelMask, ProgressNotifier &iNotifier) const =0
virtual bool	ApplyAdaptiveMedian (AbstractImage &ioImage, uint32 iWMax, uint32 iIteration, uint32 iChannelMask, ProgressNotifier &iNotifier) const =0

---

Detailed Description

Interface defining morphological processing functionnalities.
We can investigate from these papers for new services: Hybrid Median filter.

Definition at line 49 of file IImageMorphologicalProcessing.h.

---

Constructor & Destructor Documentation

virtual eLynx::Image::IImageMorphologicalProcessing::~IImageMorphologicalProcessing

(

)

[virtual]

---

Member Function Documentation

virtual bool eLynx::Image::IImageMorphologicalProcessing::Apply	(	AbstractImage &	ioImage,
		EMorphologicalFilterType	iType,
		const ImageLub &	iKernelMask,
		bool	ibLuminance,
		uint32	iIteration,
		uint32	iChannelMask,
		ProgressNotifier &	iNotifier
	)			const [pure virtual]

Morphological filter with mask as kernel.

Parameters:

	ioImage	image to be filtered.
	iType	Morphological filter type.
	iKernelMask	grey mask, use values 0 to exclude pixel, >0 to use pixel.
	ibLuminance	true to sort pixels using by luminance, false to process each channel as grey.
	iIteration	number of iterations.
	iChannelMask	selected channels to be processed. Default is all.
	iNotifier	a notifier for progression, log and cancel.

Returns:

Method running status.

Implemented in eLynx::Image::ImageMorphologicalProcessingImpl< Pixel >.

virtual bool eLynx::Image::IImageMorphologicalProcessing::Apply	(	AbstractImage &	ioImage,
		EMorphologicalFilterType	iType,
		uint32	iWidth,
		bool	ibCircular,
		bool	ibLuminance,
		uint32	iIteration,
		uint32	iChannelMask,
		ProgressNotifier &	iNotifier
	)			const [pure virtual]

Morphological filter with squared or circular kernel.

Parameters:

	ioImage	image to be filtered.
	iType	Morphological filter type.
	iWidth	width of squared local area.
	ibCircular	false to use square kernel, true to use circular.
	ibLuminance	true to sort pixels using by luminance, false to process each channel as grey.
	iIteration	number of iterations.
	iChannelMask	selected channels to be processed. Default is all.
	iNotifier	a notifier for progression, log and cancel.

Returns:

Method running status.

Implemented in eLynx::Image::ImageMorphologicalProcessingImpl< Pixel >.

virtual bool eLynx::Image::IImageMorphologicalProcessing::ApplyMedian	(	AbstractImage &	ioImage,
		uint32	iWidth,
		uint32	iHeight,
		uint32	iIteration,
		uint32	iChannelMask,
		ProgressNotifier &	iNotifier
	)			const [pure virtual]

Median filter on WxH window

Parameters:

	ioImage	image to be filtered.
	iWidth	width of local area.
	iHeight	height of local area.
	iIteration	number of iterations.
	iChannelMask	selected channels to be processed. Default is all.
	iNotifier	a notifier for progression, log and cancel.

Returns:

Method running status.

Implemented in eLynx::Image::ImageMorphologicalProcessingImpl< Pixel >.

virtual bool eLynx::Image::IImageMorphologicalProcessing::ApplyAdaptiveMedian	(	AbstractImage &	ioImage,
		uint32	iWMax,
		uint32	iIteration,
		uint32	iChannelMask,
		ProgressNotifier &	iNotifier
	)			const [pure virtual]

Adaptive Median filter on square window. Based on Salt-and-Pepper Noise Removal by Median-type Noise Detectors and Detail-preserving Regularization.

Parameters:

	ioImage	image to be filtered.
	iWMax	max size of the median window.
	iIteration	number of iterations.
	iChannelMask	selected channels to be processed. Default is all.
	iNotifier	a notifier for progression, log and cancel.

Returns:

Method running status.

Implemented in eLynx::Image::ImageMorphologicalProcessingImpl< Pixel >.

---

The documentation for this class was generated from the following file:

• IImageMorphologicalProcessing.h
