eLynx::Image::IImageGeometry Class Reference

#include <IImageGeometry.h>

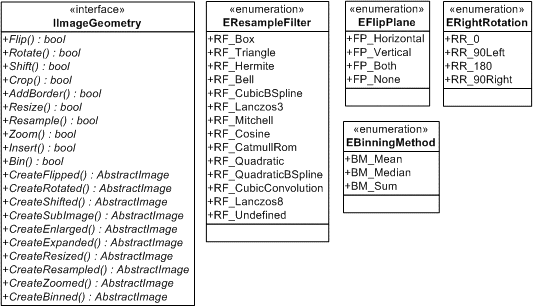

Inheritance diagram for eLynx::Image::IImageGeometry:

List of all members.

Public Member Functions
virtual	~IImageGeometry ()
Mirrors
virtual bool	Flip (AbstractImage &ioImage, EFlipPlane iFlipPlane, ProgressNotifier &iNotifier=ProgressNotifier_NULL) const =0
virtual boost::shared_ptr < AbstractImage >	CreateFlipped (const AbstractImage &iImage, EFlipPlane iFlipPlane, ProgressNotifier &iNotifier=ProgressNotifier_NULL) const =0
Rotations
virtual bool	Rotate (AbstractImage &ioImage, ERightRotation iRotation, ProgressNotifier &iNotifier=ProgressNotifier_NULL) const =0
virtual bool	Rotate (AbstractImage &ioImage, double iDegrees, int32 iFlags=RF_Default, ProgressNotifier &iNotifier=ProgressNotifier_NULL) const =0
virtual boost::shared_ptr < AbstractImage >	CreateRotated (const AbstractImage &iImage, ERightRotation iRotation, ProgressNotifier &iNotifier=ProgressNotifier_NULL) const =0
virtual boost::shared_ptr < AbstractImage >	CreateRotated (const AbstractImage &iImage, double iDegrees, int32 iFlags=RF_Default, ProgressNotifier &iNotifier=ProgressNotifier_NULL) const =0
Sizing, sub, zoom
virtual bool	Crop (AbstractImage &ioImage, uint32 iX, uint32 iY, uint32 iWidth, uint32 iHeight, ProgressNotifier &iNotifier=ProgressNotifier_NULL) const =0
virtual bool	AddBorder (AbstractImage &ioImage, uint32 iLeft, uint32 iRight, uint32 iTop, uint32 iBottom, bool ibBlack, ProgressNotifier &iNotifier=ProgressNotifier_NULL) const =0
virtual bool	Resize (AbstractImage &ioImage, uint32 iWidth, uint32 iHeight, ProgressNotifier &iNotifier=ProgressNotifier_NULL) const =0
virtual bool	Zoom (AbstractImage &ioImage, uint32 iZoom, ProgressNotifier &iNotifier=ProgressNotifier_NULL) const =0
virtual bool	Bin (AbstractImage &ioImage, uint32 iDim, EBinningMethod iMethod, ProgressNotifier &iNotifier=ProgressNotifier_NULL) const =0
virtual boost::shared_ptr < AbstractImage >	CreateSubImage (const AbstractImage &iImage, uint32 iX, uint32 iY, uint32 iWidth, uint32 iHeight, ProgressNotifier &iNotifier=ProgressNotifier_NULL) const =0
virtual boost::shared_ptr < AbstractImage >	CreateEnlarged (const AbstractImage &iImage, uint32 iLeft, uint32 iRight, uint32 iTop, uint32 iBottom, bool ibBlack, ProgressNotifier &iNotifier=ProgressNotifier_NULL) const =0
virtual boost::shared_ptr < AbstractImage >	CreateResized (const AbstractImage &iImage, uint32 iWidth, uint32 iHeight, ProgressNotifier &iNotifier=ProgressNotifier_NULL) const =0
virtual boost::shared_ptr < AbstractImage >	CreateZoomed (const AbstractImage &iImage, uint32 iZoom, ProgressNotifier &iNotifier=ProgressNotifier_NULL) const =0
virtual boost::shared_ptr < AbstractImage >	CreateBinned (const AbstractImage &iImage, uint32 iDim, EBinningMethod iMethod, ProgressNotifier &iNotifier=ProgressNotifier_NULL) const =0
virtual boost::shared_ptr < AbstractImage >	CreateResampled (const AbstractImage &iImage, uint32 iWidth, uint32 iHeight, Math::EResampleFilter iFilter, ProgressNotifier &iNotifier=ProgressNotifier_NULL) const =0
virtual bool	Resample (AbstractImage &ioImage, uint32 iWidth, uint32 iHeight, Math::EResampleFilter iFilter, ProgressNotifier &iNotifier=ProgressNotifier_NULL) const =0
virtual bool	Insert (AbstractImage &ioImage, const AbstractImage &iInserted, int32 iX, int32 iY, ProgressNotifier &iNotifier=ProgressNotifier_NULL) const =0
Shifting
virtual bool	Shift (AbstractImage &ioImage, int32 iHorizontal, int32 iVertical, ProgressNotifier &iNotifier=ProgressNotifier_NULL) const =0
virtual bool	Shift (AbstractImage &ioImage, double iHorizontal, double iVertical, ProgressNotifier &iNotifier=ProgressNotifier_NULL) const =0
virtual boost::shared_ptr < AbstractImage >	CreateShifted (const AbstractImage &iImage, int32 iHorizontal, int32 iVertical, ProgressNotifier &iNotifier=ProgressNotifier_NULL) const =0
virtual boost::shared_ptr < AbstractImage >	CreateShifted (const AbstractImage &iImage, double iHorizontal, double iVertical, ProgressNotifier &iNotifier=ProgressNotifier_NULL) const =0
virtual boost::shared_ptr < AbstractImage >	CreateExpanded (const AbstractImage &iImage, uint32 iBorder, ProgressNotifier &iNotifier=ProgressNotifier_NULL) const =0

---

Detailed Description

Interface for image geometry methods. Geometry methods conserve pixel format (ISO color space and ISO resolution). Map and image dimensions can be changed.

Definition at line 70 of file IImageGeometry.h.

---

Constructor & Destructor Documentation

virtual eLynx::Image::IImageGeometry::~IImageGeometry

(

)

[virtual]

virtual destructor.

---

Member Function Documentation

virtual bool eLynx::Image::IImageGeometry::Flip	(	AbstractImage &	ioImage,
		EFlipPlane	iFlipPlane,
		ProgressNotifier &	iNotifier = ProgressNotifier_NULL
	)			const [pure virtual]

Perform symmetry of an image.

Flip(FP_Horizontal)

Original

Flip(FP_Vertical)

Parameters:

	ioImage	image to process.
	iFlipPlane	flip plane for symetry.
	iNotifier	a notifier for progression and cancel.

Returns:

Method running status.

Implemented in eLynx::Image::ImageGeometryImpl< Pixel >.

virtual boost::shared_ptr<AbstractImage> eLynx::Image::IImageGeometry::CreateFlipped	(	const AbstractImage &	iImage,
		EFlipPlane	iFlipPlane,
		ProgressNotifier &	iNotifier = ProgressNotifier_NULL
	)			const [pure virtual]

Create a flipped image.

Parameters:

	iImage	source image.
	iFlipPlane	flip plane for symetry.
	iNotifier	a notifier for progression and cancel.

Returns:

The new flipped image.

Implemented in eLynx::Image::ImageGeometryImpl< Pixel >.

virtual bool eLynx::Image::IImageGeometry::Rotate	(	AbstractImage &	ioImage,
		ERightRotation	iRotation,
		ProgressNotifier &	iNotifier = ProgressNotifier_NULL
	)			const [pure virtual]

Fast rotate image with right angles.

Original

Rotate(RR_90Right)

Rotate(RR_180)

Rotate(RR_90Left)

Parameters:

	ioImage	image to process.
	iRotation	the rotation of 0°, 90°, 180° or 270°.
	iNotifier	a notifier for progression and cancel.

Returns:

Method running status.

Implemented in eLynx::Image::ImageGeometryImpl< Pixel >.

virtual bool eLynx::Image::IImageGeometry::Rotate	(	AbstractImage &	ioImage,
		double	iDegrees,
		int32	iFlags = RF_Default,
		ProgressNotifier &	iNotifier = ProgressNotifier_NULL
	)			const [pure virtual]

Rotate an image with finest degree angles.

Parameters:

	ioImage	image to process.
	iDegrees	the rotation angle in degrees.
	iFlags	a combinaison of RF_Expand, RF_Interpolation and RF_Antialiasing.
	iNotifier	a notifier for progression and cancel.

Returns:

The new rotated image.

Implemented in eLynx::Image::ImageGeometryImpl< Pixel >.

virtual boost::shared_ptr<AbstractImage> eLynx::Image::IImageGeometry::CreateRotated	(	const AbstractImage &	iImage,
		ERightRotation	iRotation,
		ProgressNotifier &	iNotifier = ProgressNotifier_NULL
	)			const [pure virtual]

Create a 90° multiple rotated image.

Parameters:

	iImage	source image.
	iRotation	the rotation of 0°, 90°, 180° or 270°
	iNotifier	a notifier for progression and cancel.

Returns:

The new rotated image.

Implemented in eLynx::Image::ImageGeometryImpl< Pixel >.

virtual boost::shared_ptr<AbstractImage> eLynx::Image::IImageGeometry::CreateRotated	(	const AbstractImage &	iImage,
		double	iDegrees,
		int32	iFlags = RF_Default,
		ProgressNotifier &	iNotifier = ProgressNotifier_NULL
	)			const [pure virtual]

Create a rotated image with finest degree angles.

Parameters:

	iImage	source image.
	iDegrees	the rotation angle in degrees.
	iFlags	a combinaison of RF_Expand, RF_Interpolation and RF_Antialiasing.
	iNotifier	a notifier for progression and cancel.

Returns:

The new rotated image.

Implemented in eLynx::Image::ImageGeometryImpl< Pixel >.

virtual bool eLynx::Image::IImageGeometry::Crop	(	AbstractImage &	ioImage,
		uint32	iX,
		uint32	iY,
		uint32	iWidth,
		uint32	iHeight,
		ProgressNotifier &	iNotifier = ProgressNotifier_NULL
	)			const [pure virtual]

Crop image.

Original

Crop(40,20, 100,50)

Parameters:

	ioImage	image to process.
	iX	x position of top left point in image.
	iY	y position of top left point in image.
	iWidth	width image after crop.
	iHeight	height image after crop.
	iNotifier	a notifier for progression and cancel.

Returns:

Method running status.

Implemented in eLynx::Image::ImageGeometryImpl< Pixel >.

virtual bool eLynx::Image::IImageGeometry::AddBorder	(	AbstractImage &	ioImage,
		uint32	iLeft,
		uint32	iRight,
		uint32	iTop,
		uint32	iBottom,
		bool	ibBlack,
		ProgressNotifier &	iNotifier = ProgressNotifier_NULL
	)			const [pure virtual]

Add border to an image.

AddBorder(10,20,30,40,true)

Original

AddBorder(40,30,20,10,false)

Parameters:

	ioImage	source image.
	iLeft	size on border to add on left in pixels.
	iRight	size on border to add on right in pixels.
	iTop	size on border to add on top in pixels.
	iBottom	size on border to add on bottom in pixels.
	ibBlack	true to have black border, false for white.
	iNotifier	a notifier for progression and cancel.

Returns:

Method running status.

Implemented in eLynx::Image::ImageGeometryImpl< Pixel >.

virtual bool eLynx::Image::IImageGeometry::Resize	(	AbstractImage &	ioImage,
		uint32	iWidth,
		uint32	iHeight,
		ProgressNotifier &	iNotifier = ProgressNotifier_NULL
	)			const [pure virtual]

Resize image.

Original

Resize(100, 200)

Parameters:

	ioImage	image to process.
	iWidth	the new width.
	iHeight	the new height.
	iNotifier	a notifier for progression and cancel.

Returns:

Method running status.

Implemented in eLynx::Image::ImageGeometryImpl< Pixel >.

virtual bool eLynx::Image::IImageGeometry::Zoom	(	AbstractImage &	ioImage,
		uint32	iZoom,
		ProgressNotifier &	iNotifier = ProgressNotifier_NULL
	)			const [pure virtual]

Zoom image.

Original

Zoom(2)

Parameters:

	ioImage	image to process.
	iZoom	magnifier coefficient.
	iNotifier	a notifier for progression and cancel.

Returns:

Method running status.

Implemented in eLynx::Image::ImageGeometryImpl< Pixel >.

virtual bool eLynx::Image::IImageGeometry::Bin	(	AbstractImage &	ioImage,
		uint32	iDim,
		EBinningMethod	iMethod,
		ProgressNotifier &	iNotifier = ProgressNotifier_NULL
	)			const [pure virtual]

Apply binning to an image.

Original

Bin(2,BI_AVG)

Bin(2,BI_SUM)

Bin(3,BI_AVG)

Bin(3,BI_SUM)

Parameters:

	ioImage	image to process.
	iDim	Binning scale. Only 2 and 3 are supported
	iMethod	Binning method.
	iNotifier	a notifier for progression and cancel.

Returns:

Method running status.

Implemented in eLynx::Image::ImageGeometryImpl< Pixel >.

virtual boost::shared_ptr<AbstractImage> eLynx::Image::IImageGeometry::CreateSubImage	(	const AbstractImage &	iImage,
		uint32	iX,
		uint32	iY,
		uint32	iWidth,
		uint32	iHeight,
		ProgressNotifier &	iNotifier = ProgressNotifier_NULL
	)			const [pure virtual]

CreateSubImage.

Parameters:

	iImage	source image.
	iX	x position of top left point of subimage in image.
	iY	y position of top left point of subimage in image.
	iWidth	width of sub-image.
	iHeight	height of sub-image.
	iNotifier	a notifier for progression and cancel.

Returns:

The sub image.

Implemented in eLynx::Image::ImageGeometryImpl< Pixel >.

virtual boost::shared_ptr<AbstractImage> eLynx::Image::IImageGeometry::CreateEnlarged	(	const AbstractImage &	iImage,
		uint32	iLeft,
		uint32	iRight,
		uint32	iTop,
		uint32	iBottom,
		bool	ibBlack,
		ProgressNotifier &	iNotifier = ProgressNotifier_NULL
	)			const [pure virtual]

CreateEnlarged create an image for source adding borders.

Parameters:

	iImage	source image.
	iLeft	size on border to add on left in pixels.
	iRight	size on border to add on right in pixels.
	iTop	size on border to add on top in pixels.
	iBottom	size on border to add on bottom in pixels.
	ibBlack	true to have black border, false for white.
	iNotifier	a notifier for progression and cancel.

Returns:

The sub image.

Implemented in eLynx::Image::ImageGeometryImpl< Pixel >.

virtual boost::shared_ptr<AbstractImage> eLynx::Image::IImageGeometry::CreateResized	(	const AbstractImage &	iImage,
		uint32	iWidth,
		uint32	iHeight,
		ProgressNotifier &	iNotifier = ProgressNotifier_NULL
	)			const [pure virtual]

Create a resized image with dimension (iWidth, iHeight) using nearest point algo.

Parameters:

	iImage	source image.
	iWidth	the width of the new image.
	iHeight	the height of the new image.
	iNotifier	a notifier for progression and cancel.

Returns:

The new resized image.

Implemented in eLynx::Image::ImageGeometryImpl< Pixel >.

virtual boost::shared_ptr<AbstractImage> eLynx::Image::IImageGeometry::CreateZoomed	(	const AbstractImage &	iImage,
		uint32	iZoom,
		ProgressNotifier &	iNotifier = ProgressNotifier_NULL
	)			const [pure virtual]

Create a zoomed image.

Parameters:

	iImage	source image.
	iZoom	magnifier coefficient.
	iNotifier	a notifier for progression and cancel.

Returns:

The new zoomed image.

Implemented in eLynx::Image::ImageGeometryImpl< Pixel >.

virtual boost::shared_ptr<AbstractImage> eLynx::Image::IImageGeometry::CreateBinned	(	const AbstractImage &	iImage,
		uint32	iDim,
		EBinningMethod	iMethod,
		ProgressNotifier &	iNotifier = ProgressNotifier_NULL
	)			const [pure virtual]

Create binning image.

Parameters:

	iImage	source image.
	iDim	Binning scale. Only 2 and 3 are supported
	iMethod	Binning method.
	iNotifier	a notifier for progression and cancel.

Returns:

new binning image or NULL.

Implemented in eLynx::Image::ImageGeometryImpl< Pixel >.

virtual boost::shared_ptr<AbstractImage> eLynx::Image::IImageGeometry::CreateResampled	(	const AbstractImage &	iImage,
		uint32	iWidth,
		uint32	iHeight,
		Math::EResampleFilter	iFilter,
		ProgressNotifier &	iNotifier = ProgressNotifier_NULL
	)			const [pure virtual]

Implemented in eLynx::Image::ImageGeometryImpl< Pixel >.

virtual bool eLynx::Image::IImageGeometry::Resample	(	AbstractImage &	ioImage,
		uint32	iWidth,
		uint32	iHeight,
		Math::EResampleFilter	iFilter,
		ProgressNotifier &	iNotifier = ProgressNotifier_NULL
	)			const [pure virtual]

Resample image using filter.

Original

Resample(220,110) with RF_Mitchell

Parameters:

	ioImage	image to process.
	iWidth	the new width.
	iHeight	the new height.
	iFilter	the filter to use.
	iNotifier	a notifier for progression and cancel.

Returns:

Method running status.

Implemented in eLynx::Image::ImageGeometryImpl< Pixel >.

virtual bool eLynx::Image::IImageGeometry::Insert	(	AbstractImage &	ioImage,
		const AbstractImage &	iInserted,
		int32	iX,
		int32	iY,
		ProgressNotifier &	iNotifier = ProgressNotifier_NULL
	)			const [pure virtual]

Implemented in eLynx::Image::ImageGeometryImpl< Pixel >.

virtual bool eLynx::Image::IImageGeometry::Shift	(	AbstractImage &	ioImage,
		int32	iHorizontal,
		int32	iVertical,
		ProgressNotifier &	iNotifier = ProgressNotifier_NULL
	)			const [pure virtual]

Shift an image with complete pixel size.

Shift(50,10)

Original

Shift(-20,0)

Parameters:

	ioImage	image to process.
	iHorizontal	horizontal shift in pixels, >0 means right shift, <0 left shift.
	iVertical	vertical shift in pixels, >0 means bottom shift, <0 top shift.
	iNotifier	a notifier for progression and cancel.

Returns:

Method running status.

Implemented in eLynx::Image::ImageGeometryImpl< Pixel >.

virtual bool eLynx::Image::IImageGeometry::Shift	(	AbstractImage &	ioImage,
		double	iHorizontal,
		double	iVertical,
		ProgressNotifier &	iNotifier = ProgressNotifier_NULL
	)			const [pure virtual]

Shift an image with less than pixels resolution.

Parameters:

	ioImage	image to process.
	iHorizontal	horizontal shift.
	iVertical	vertical shift.
	iNotifier	a notifier for progression and cancel.

Returns:

Method running status.

Implemented in eLynx::Image::ImageGeometryImpl< Pixel >.

virtual boost::shared_ptr<AbstractImage> eLynx::Image::IImageGeometry::CreateShifted	(	const AbstractImage &	iImage,
		int32	iHorizontal,
		int32	iVertical,
		ProgressNotifier &	iNotifier = ProgressNotifier_NULL
	)			const [pure virtual]

Implemented in eLynx::Image::ImageGeometryImpl< Pixel >.

virtual boost::shared_ptr<AbstractImage> eLynx::Image::IImageGeometry::CreateShifted	(	const AbstractImage &	iImage,
		double	iHorizontal,
		double	iVertical,
		ProgressNotifier &	iNotifier = ProgressNotifier_NULL
	)			const [pure virtual]

Implemented in eLynx::Image::ImageGeometryImpl< Pixel >.

virtual boost::shared_ptr<AbstractImage> eLynx::Image::IImageGeometry::CreateExpanded	(	const AbstractImage &	iImage,
		uint32	iBorder,
		ProgressNotifier &	iNotifier = ProgressNotifier_NULL
	)			const [pure virtual]

Implemented in eLynx::Image::ImageGeometryImpl< Pixel >.

---

The documentation for this class was generated from the following file:

• IImageGeometry.h
